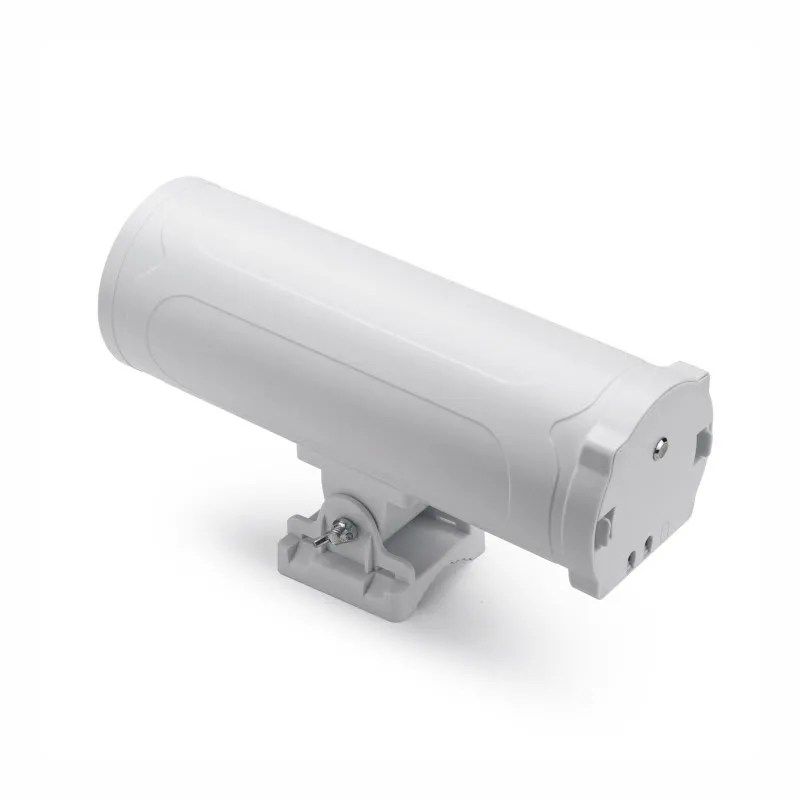

Dragino DLOS8 Outdoor LoRaWAN Gateway
Price range: $0.00 through $467.00
Dragino DLOS8 Outdoor LoRaWAN Gateway (US 915 MHz band)
- Helium Network Compatible – Earns $HNT from Data Transfer ONLY
- Connects to AWS-IoT Core LoRaWAN
- Offers 10 programmable parallel demodulation paths
- Features external fiberglass antenna
- Provides Open Source OpenWrt system
- Managed by Web GUI, SSH via LAN or WiFi
- Built-in GPS module for location and timing
- Supports Station Mode
- LoRaWAN Station Connection support
DLOS8 LoRaWAN Gateway open source outdoor bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module.
The LoRa wireless allows users to send data and reach extremely long ranges at low data rates.
DLOS8 LoRaWAN Outdoor Gateway uses the Semtech packet forwarder and is fully compatible with the LoRaWAN protocol. It includes an SX1301 LoRaWAN concentrator, which provides 10 programmable parallel demodulation paths.DLOS8 LoRaWAN Outdoor Gateway has pre-configured standard LoRaWAN frequency bands to use for different countries. Users can also customize the frequency bands to use in their own LoRaWAN network.
DLOS8 LoRaWAN Outdoor Gateway can communicate with the ABP LoRaWAN end node without the LoRaWAN server. System integrators can use it to integrate with their existing IoT Service without setting up their own LoRaWAN server or using 3rd party LoRaWAN service.
- Open Source OpenWrt system
- Managed by Web GUI, SSH via LAN or WiFi
- Emulates 49x LoRa demodulators
- Outdoor LoRaWAN Gateway
- 10 programmable parallel demodulation paths
- LoRaWAN packet filtering
- Far seeing LED indicator
- Built-in GPS module for location & timing
- External fiber glass antenna
- 802.3af PoE
- IP65
- Lighting Protection
- Power Consumption:12v 300 ~500mA
Applications:
- Smart Buildings and Home Automation
- Logistics and Supply Chain Management
- Smart Metering
- Smart Agriculture
- Smart Cities
- Smart Factory
LoRa Spec:
- 1 x SX1301 + 2 x 1257 LoRa Tranceiver
General Specification:
- 10M/100M RJ45 Ports x 1
- 1 x 2.4G WiFi (802.11 bgn)
- 1 x USB host port
- Power by 12v DC or PoE
Package Content:
* 1 x DLOS8
* 1 x Fiber Glass Antenna
* 1 x Power Adapter
* Enviromental Package
Dimension and Weight:
Package Size: 490*120*190mm = 19.3*4.7*7.5inch
Weight / pcs : 1.7kg = 3.74lb
Volume Weight: 2.5kg = 5.5lb
