Dragino LTC2-LB/LS Industrial Temperature Transmitter
- LoRaWAN 1.0.3 Class A
- US 915 MHz band
- Ultra-low power consumption
- max: 2 x monitor temperature channels
- Support 3 -wire PT-100
- Temperature alarm
- Datalog Feature
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- 8500mAh Li/SOCl2 Battery (LTC2-LB)
- Solar panel + 3000mAh Li-ion battery (LTC2-LS)

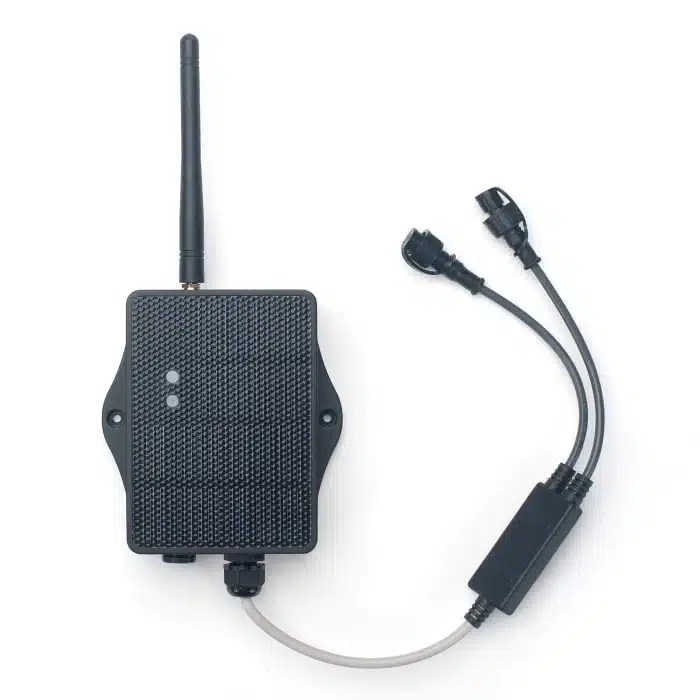

[vc_row][vc_column width=”1/2″][vc_column_text css=””]The Dragino LTC2-LB/LS Industrial LoRaWAN Temperature Transmitter is designed to monitor temperature for different environment. It supports to read PT100 probe and convert the value to temperature and uplink to IoT server via LoRaWAN protocol.
LTC2-LB/LS supports Datalog feature. User can retrieve the sensor value via LoRaWAN downlink command.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”30776″ img_size=”large” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_single_image image=”30777″ img_size=”large” alignment=”center” css=””][/vc_column][vc_column width=”1/2″][vc_column_text css=””]LTC2-LB/LS supports BLE configure and wireless OTA update which make user easy to use.
LTC2-LB/LS is powered by 8500mAh Li-SOCI2 battery or Solar panel + 3000mAh Li-ion battery, it is designed for long-term use up to several years.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space][vc_text_separator title=”Features” title_align=”separator_align_left” color=”custom” border_width=”5″ accent_color=”#d4af37″][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text css=””]
- LoRaWAN 1.0.3 Class A
- US915 Band
- Ultra-low power consumption
- max: 2 x monitor temperature channels
- Support 3 -wire PT-100
- Temperature alarm
- Datalog Feature
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- Uplink on periodically
- Downlink to change configure
- 8500mAh Li/SOCl2 Battery (LB)
- Solar panel + 3000mAh Li-ion battery (LS)
[/vc_column_text][vc_column_text][/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text css=””]
Applications:
- Laboratory
- Food Safety
- Cold Chain
- Industrial Equipment
[/vc_column_text][/vc_column][/vc_row][vc_row disable_element=”yes”][vc_column][vc_empty_space][vc_text_separator title=”Specifications” title_align=”separator_align_left” color=”custom” border_width=”5″ accent_color=”#d4af37″][/vc_column][/vc_row][vc_row disable_element=”yes”][vc_column width=”1/2″][vc_column_text css=””]Common DC Characteristics:
- Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
- Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuously current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text css=””][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space][vc_text_separator title=”Package” title_align=”separator_align_left” color=”custom” border_width=”5″ accent_color=”#d4af37″][vc_column_text]Package Includes:
- 1 x LTC2 Industrial LoRaWAN Temperature Transmitter
Dimensions and Weight:
- Device Size: 150 x 120 x 55mm
